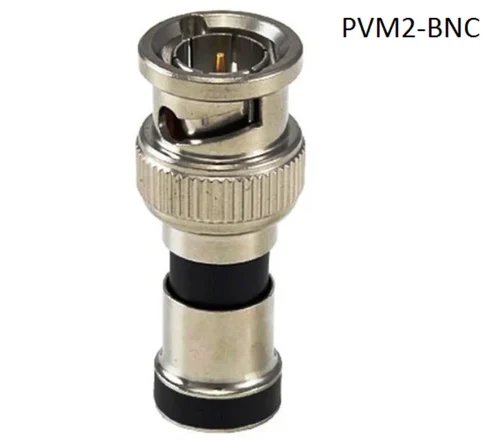

Mini BNC Connector For Mini Coax ( Dual Tri -quad Shield).USE FOR MINI59 HEADEND CABLE (CMD95VR-00-HIB) AND BELDEN 1855A CABLE.UNIVERSAL COMPRESSION BNC CONNECTOR. Audio Video Cable
Perfectvision Usa, Mini Bnc Connector For Mini Coax ( Dual Shield) , Audio Video Cable FEATURES- SCTE compliant gold plated fixed pin (SCTE-IPS-SP-401) for excellent electricalperformance with standard pin size for superior contact with female port.- 360° of radial holding force (RIDGELOC 360®) allows for superior holding force.- ANYTOOL® design allows for use of a wider variety of compression tools to ensureproper compression.- Optimum internal design for easy insertion- 1 piece design offers rapid and consistent installation without loose parts or additionalprocesses for prop..

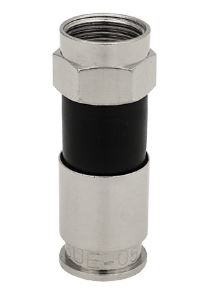

RG6 Compression Connector For Dual Shield Cable. Designed for DBS and broadband installations. Compatible with all application frequencies. - Engineered from precision machined copper alloy, UV protected POM, and “O” sealing ring. - The ANYTOOL® design works with any standard compression tool. - Rear shell cannot back up. Locks coax cable securely and positively in place This connector fits standard or dual shield 75 Ω Series 6 coax cable This is our RidgeLoc® Series 6 connector. Like all previous models it’s body and the rear shell capture rings prevent backing..

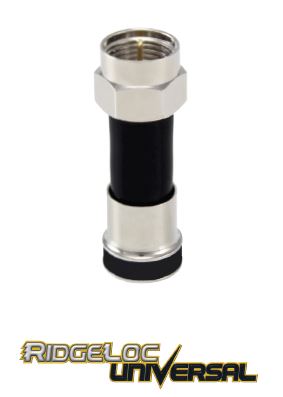

PerfectVision universal connector fits any standard quad shield, tri-shield or dual shield RG-6 75 Ohm coax cable. Designed in USA. 50 RG6 Universal connectors per bag. High performance F-type connector. Quick, easy installation on all RG-6 coaxial cables including dual, tri and quad shield. Precision machined body with mil spec plating. Designed to work with any standard compression tool. TESTED & CERTIFIED Passed: SCTE-103-2004 (DC Contact Resistance) Passed: ANSI/SCTE 60-2004 (Moisture Migration Test) Passed: ASTM-B117-03 (Salt Spray Test) Passed: ANSI/SCTE-99-2004 (Ax..

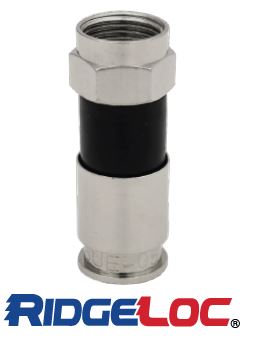

PerfectVision RIDGELOC® COMPRESSION CONNECTOR (WITH ADDITIONAL POST FACE “O” RING) FEATURES - Designed for DBS and broadband installations. Compatible with all application frequencies - Engineered from precision machined copper alloy, UV protected POM, and rubber (“O” ring) - The ANYTOOL® design works with ANY standard compression tool - Rear shell cannot back up. Locks coax cable securely and positively in place - Additional sealing “O” ring at post face 2 MHz to 3 GHz 75 Ohms nominal Better than -90 dB Minimum -30db to 2.2 GHz PV6D-O APPLICATION This co..

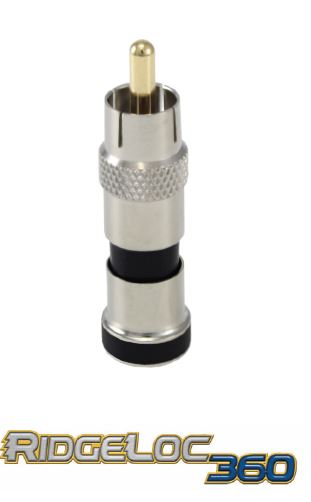

PerfectVision’s Ridgeloc 360® portfolio of connectors includes a RCA male connector for RG59 mini series cable. The PVM2-RCA is designed for standard mini series cable (dual shield) FEATURES - 360° of radial holding force (RIDGELOC 360®) allows for superior holding force. - ANYTOOL® design allows for use of a wider variety of compression tools to ensure proper compression. - Optimum internal design for easy insertion - 1 piece design offers rapid and consistent installation without loose parts or additional processes for proper installation. - Assortment of color code..

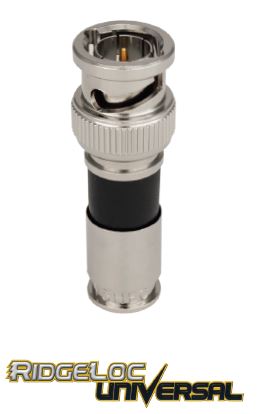

Perfectvision’s Ridgeloc 360® portfolio of connectors includes a one-piece BNC connector for RG 59 HEC coxial cables. The PV5HEC-BNC is suitable for all HEC cable designs (including tri-shield and quad-shield).
DESCRIPTION PerfectVision’s Ridgeloc 360® portfolio of connectors includes a one-piece pin type “F” male connector for RG59 mini series cable. The PVMU-F is designed for standard mini series cable (dual, tri and quad shield MECHANICAL CHARACTERISTICS All metal: Precision Machined Brass Alloy with Nickel Plating Body: Black UV Reistant Polymer Dieletric: PTFE Center Conductor Guide: POM Fixed Pin: Precision Machined Brass Alloy with Gold Plating Compression Length: 24 mm
The internal components of this barrel connector are much different from a standard VHF/UHF barrel connector. The center coax conductor indexes into a close-tolerance tube that is resilient (spring) ... Bag of 100 Double female barrel connector Use to join two cables Also fits to wall plates Used for high frequency cable runs 3 GHZ Internal components designed for high frequency Gold plated center conductor assures minimum RF loss & good electrical connections Resilient internal metals for dependable repeated insertion connections Can easily be used in wall plates with yo..

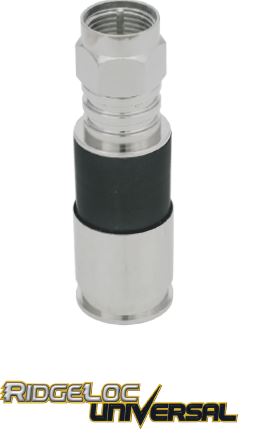

PerfectVision Universal RG11 Connector fits any standard quad shield , tri -shield or dual shield 75 Ohm Series 11 coax cable. FEATURES - Designed for DBS and Broadband installations. Compatible with all application frequencies. - Standard 7/16 hex nut for use with torque wrenches. - Contoured body allows ease when hand tightening. - Engineered from precision machined copper alloy, UV protected POM, and rubber (“O” ring). - The ANYTOOL™ design works with standard Series 11 compression tool. - End Bell cannot back up. Locks coax cable securely and positively in place.
PerfectVision - PVFT1 terminator cap should be installed on all unused networking ports (splitters, multi-switches, etc.) to prevent unwanted signals from causing interference. The PVFT1 will also help to protect the port from water and corrosion damages. The PVFT1 should NOT be used on powered ports if voltage is present. 100 terminators per bag.
